Applicable scene

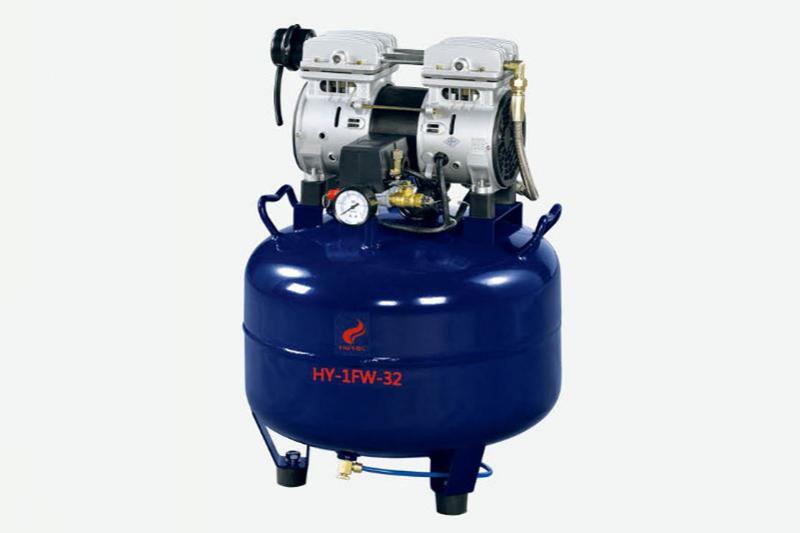

The HY-1FW-32 quiet dental air compressor is a compressed air source for integrated dental units.
Shaft power KW | Drive motor power KW | Nominal volume flow M³/min | Specific power M³/min | Rotating speed r/min | Capacity L | Noise Db(A) | Weight Kg | Dimensions mm |
0.545 | 0.55 | 0.044 | 9.6 | 1380 | 25 | 70 | 23 | 400×400×550 |

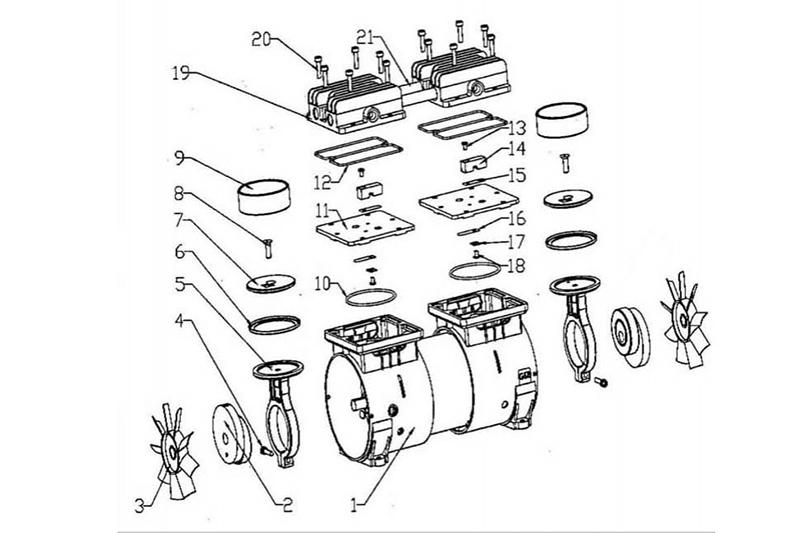

Proposal number | name | The number for each unit | Proposal number | name | The number for each unit |
1 | Air compressor components | 1 | 11 | Valve plate | 2 |
2 | Eccentric assembly | 2 | 12 | Cylinder head sealing ring | 2 |
3 | Fans | 2 | 13 | Valve screws | 2 |
4 | Connecting rod screw | 2 | 14 | Limiting block | 2 |
5 | Connecting rod | 2 | 15 | Exhaust valve | 2 |
6 | Leather bowl | 2 | 16 | Intake valve | 2 |
7 | Pressure plate | 2 | 17 | Valve gasket | 2 |
8 | Pressure plate screw | 2 | 18 | Valve screws | 2 |
9 | Cylinder liner | 2 | 19 | Cylinder head | 2 |
10 | Cylinder liner sealing ring | 2 | 20 | Cylinder head screw | 12 |
21 | Catheter | 2 |
