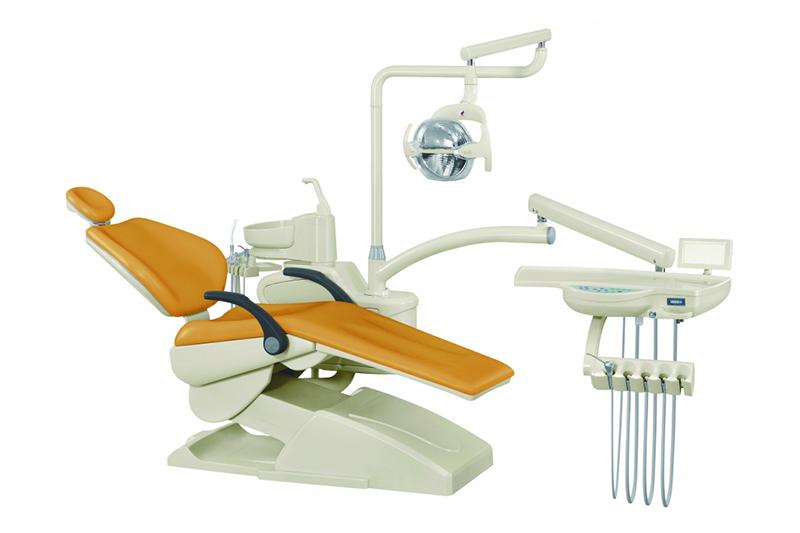

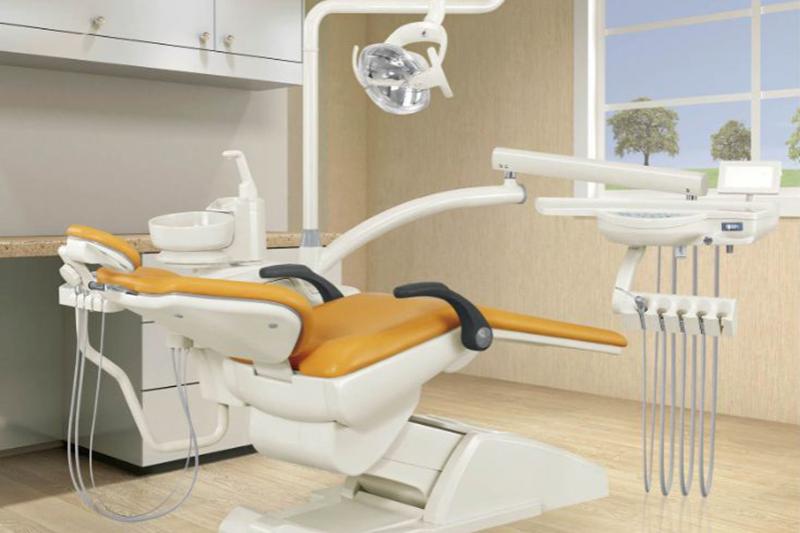

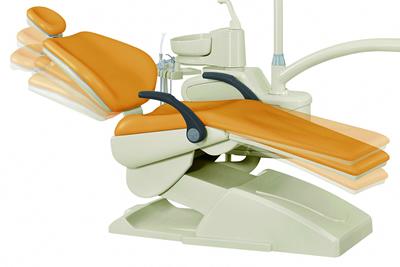

The HY-806 upgraded integrated dental unit uses a multi-link design for the patient's chair, so patients will feel very comfortable during treatment.
The 806 dental chair contains 5 memory chair positions, an infrared-sensing LED intraoral camera, an ultra-low patient seat and a doctor's chair, all of which can make the doctor's work easier and improve the doctor's experience. In addition, during the operation, the dentist can relieve the pressure and fatigue of the waist, the cervical spine, and the hand.Technical Parameters
Total power: 800VA
Input power: single-phase AC 220V±5%, 50Hz
Idle speed of high-speed gas turbine hand piece: ≥35X104r/min
Idle speed of low-speed gas turbine hand piece: ≥18X103r/min
Illumination of oral cold light: 10000LX~15000LX
Illumination of dental X-ray viewer: ≥2000LX
Weak suction saliva ejector valve: vacuum level ≥25KPa, suction flow ≥510ml/min
Strong suction saliva ejector valve: vacuum level≥25KPa, suction flow ≥750ml/min
Overall size: 1900mm X 920mm X 2000mm
Dental chair base: 880mm X 600mm
Total weight: 220Kg
Maximum height of seat cushion from ground: ≥800mm
Minimum height of seat cushion from ground: ≤450mm
Maximum angle of seat cushion back: ≤10°
The range of backward angle: 105°~170°
The expansion range of headrest: 0~ 120mm
The load capacity of the E60 dental unit: ≤ 1350N
The classification of medical instruments: class Ⅱ a
When an emergency situation is encountered during the treatment, the operation of the emergency stop machine includes lifting the assistant's instrument tray, pressing any key of the doctor's or assistant's operating panel and depressing the foot switch.
When the treatment table encounters an obstacle during the descent, the dental chair will stop falling and automatically rise. This can prevent the dental chair from being damaged by obstacles.
Water supply system
The water supply system can switch between pure water and tap water. It can directly connect to the hospital's purified water system. In addition, the system has pipeline disinfection equipment to ensure water quality and safety. It is equipped with 2 water bottles to improve work efficiency.

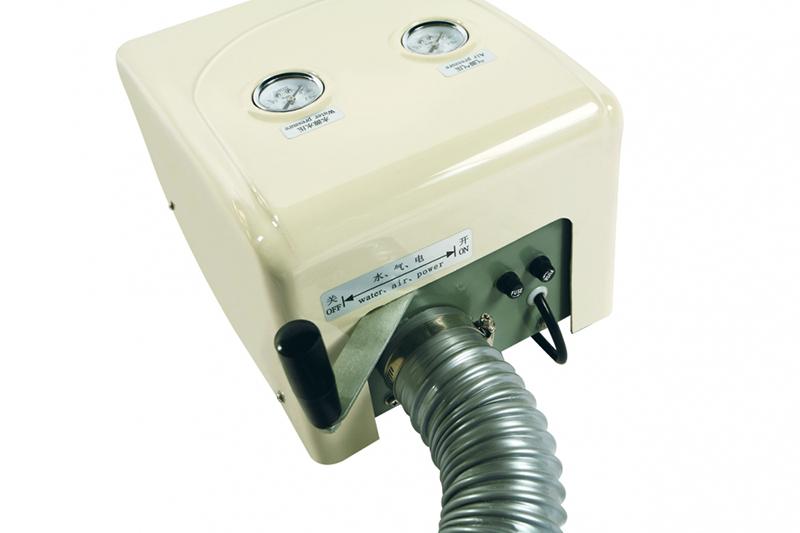

The ground box is movable and located on the side of the dental chair. The main box is made with vacuum formed technique, ensuring the box is corrosion resistant and will not fade. It also makes the assistant frame easy to operate with four hands, as well as easy to maintain.
An optional ground box can be installed on the dental chair, with the two being coordinated together to take up a small space. It is equipped with one switch for the control of water, gas and electricity, and will automatically drain to keep the air dry.
24V DC Electrostatic Chair

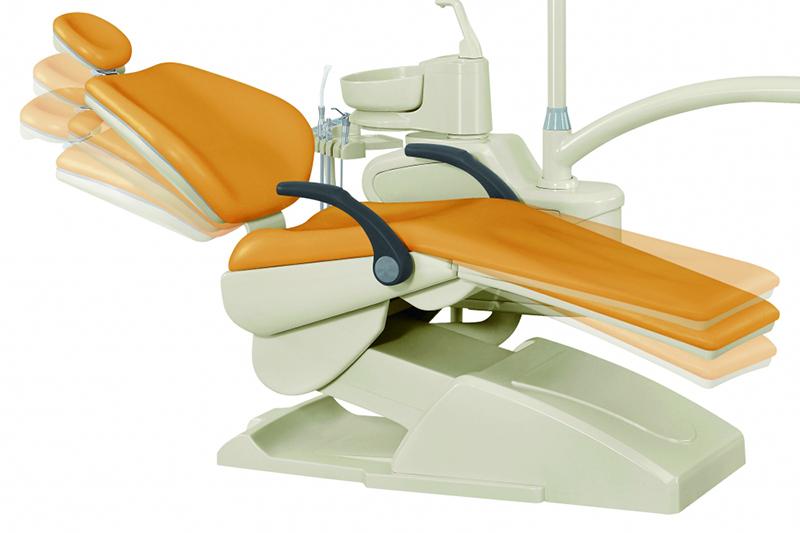

Chair position adjustable function
Chair position memory system (3 positions)
Quantitative and constant temperature water supply control system of cuspidor bowl rinse andmouth rinse cup fill
assisted control system
Spittoon that can rotate 180 degrees
Strong/weak suction saliva ejector valve system
Three-way springe (cold/hot)
Handpiece water purification device
Integral tray, cup holder and tissue box on dental unit
Dental X-ray viewer

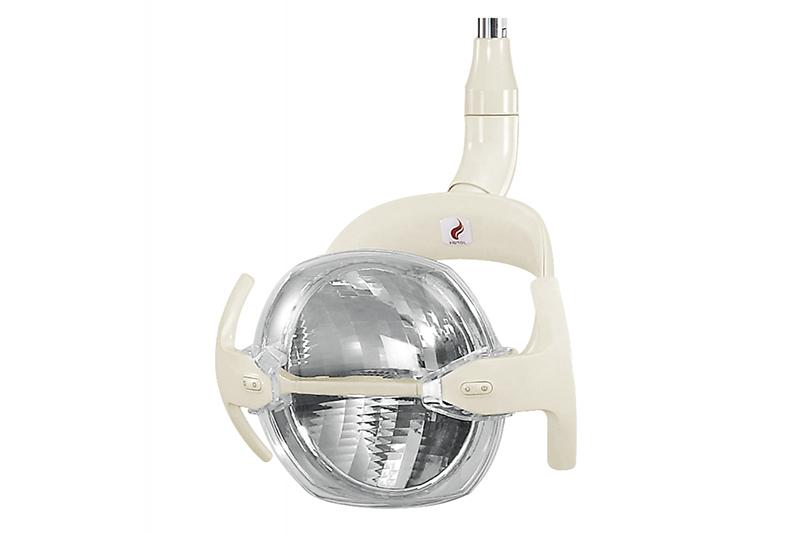

Luxurious high performance LED surgical lamp
Switch of water, electricity and gas
Comfort PU fabric cushion
High-quality anti acid, alkali and oil (polyether) corrosion water / trachea
High-quality imported solenoid valve
Taiwanese brand TIMO Tlon DC Motor
Imported four-hole high-speed handpiece
Imported four-hole low-speed handpiece
Light Emitting Diode

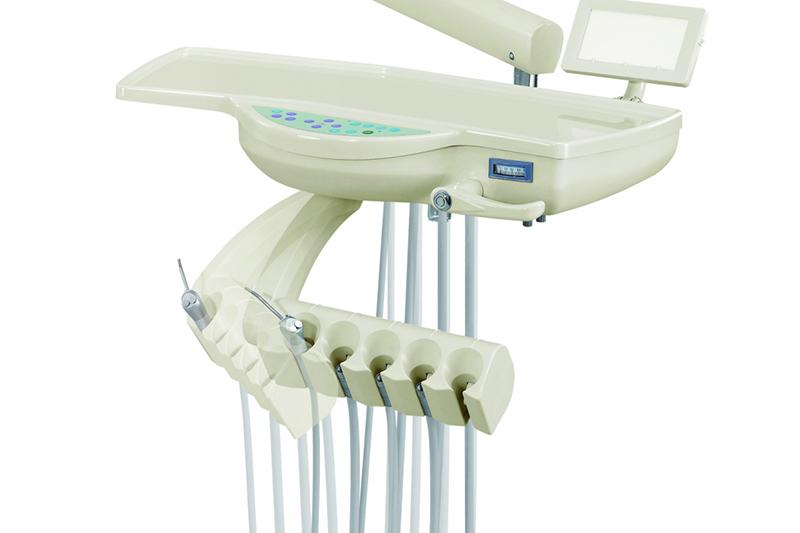

Top-mounted instrument tray
Oral cavity endoscope
U.S. imported water/trachea
Induction/manual intraoral cameras
