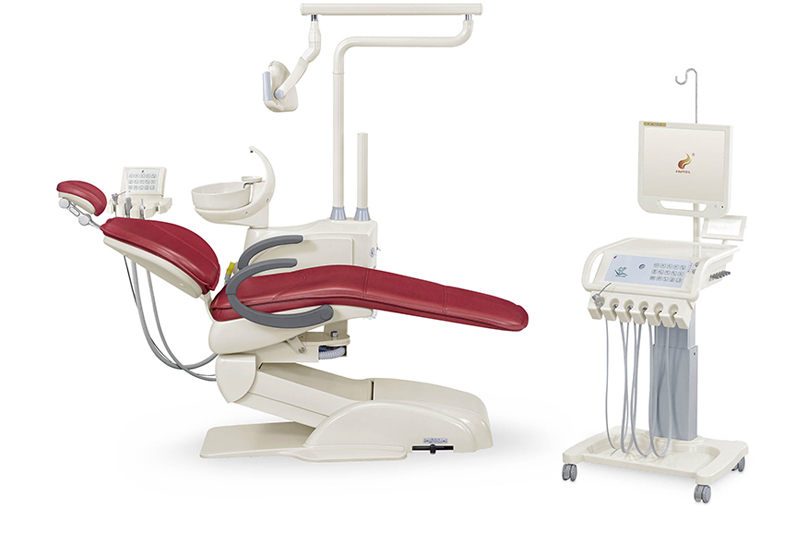

Characteristics of HY-E60 dental unit

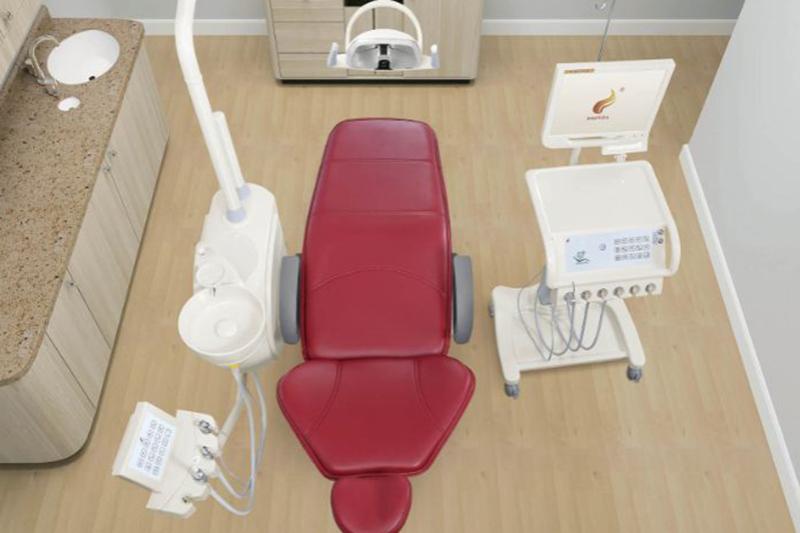

The HY-E60 portable dental unit is based on the standard version. It mounts the instrument tray on the cart, and the tray is easily rotatable in order to facilitate doctor operation.
In the design, the cart can be rotated (at the working range and height) so that dental professionals have access to the maximum operability and convenience. This ensures that operation is highly accurate in all dental tasks.
The HY-E60 mobile cart dental unit is used for dental diagnosis and treatment. The dental chair's operation is continuously operated and intermittently loaded. The operation/gap time for the high-speed dental handpiece is 2min/30s. The operation/gap time for the dental chair is 2min/8min.
Total power: 800VA
Input power: single-phase AC 220V±5%, 50Hz
Idle speed of high-speed gas turbine hand piece: ≥35X104r/min
Idle speed of low-speed gas turbine hand piece: ≥18X103r/min
Illumination of oral cold light: 15000LX~25000LX
Illumination of dental X-ray viewer: ≥2000LX
Weak suction saliva ejector valve: vacuum level ≥25KPa, suction flow ≥510ml/min
Strong suction saliva ejector valve: vacuum level≥25KPa, suction flow ≥750ml/min
Overall size: 1900mm X 920mm X 2000mm
Dental chair base: 880mm X 600mm
Total weight: 230Kg
Minimum height of seat cushion from ground: ≤450mm
Maximum angle of seat cushion back: ≤10°
The range of backward angle: 105°~170°
The expansion range of headrest: 0~ 120mm
The load capacity of the E60 dental unit: ≤ 1350N
The classification of medical instruments: class Ⅱ a
Electrical classification: class1
EMC classification: class 1B
Component introductionDental chair
Fully computer controlled operation: the waterproof and dust resistant touch buttons have a service life that is 5 times longer than traditional buttons.
The dental chair has automatic reset, patient position, and special memory functions. The main control board and sub-control board are both equipped with computer keys and an instrument tray mat.
The power system uses a Taiwanese linear silent motor, with an overall height adjustment time period of only 9 seconds. The power system does not require any maintenance.
Lowest chair position: ≤420mm
Highest chair position: ≥800mm
Maximum negative weight larger than 135Kg.
The HY-E60 integrated dental unit has an angle compensation function, meaning dentists can adjust and lock the chair's headrest with just one hand.
The dental chair is wide, and made with an American style sewing technique with environmentally friendly, ultra-fiber leather. In addition, the leather pad and body are connected with buckles, making them easy to remove.
The HY-E60 standard dental unit can be adjusted in an opposite direction, a design that is useful when patients need extra treatment. In addition, the dental chair is equipped with a double armrest, with the outer armrest capable of opening as needed. The chair's balancing arm uses a pressure lock design, and the arm joint uses a pull-down plane bearing, allowing users to freely push/pull the instrument as needed.

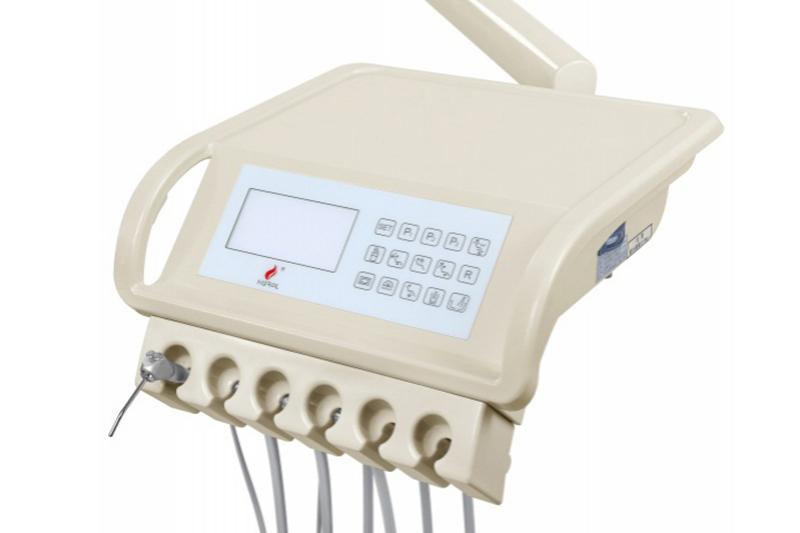

Main Operation Panel

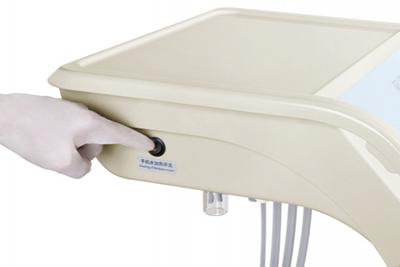

The handpiece is placed underneath, and equipped with a water adjustment button for each handpiece.
The dental chair is equipped with a low-voltage dental X-ray viewer with a balanced luminosity, making it easy for dentists to carry out clinical treatment.
The chair has a three-way syringe (water, gas, water mist) for use with cold or hot water, and a head that can be removed for easy cleaning and disinfection.
The chair is equipped with a dual-control (manual or infrared) reflective LED intraoral camera with an adjustable intensity to effectively relieve doctor eye fatigue. In addition, the light intensity is adjustable.

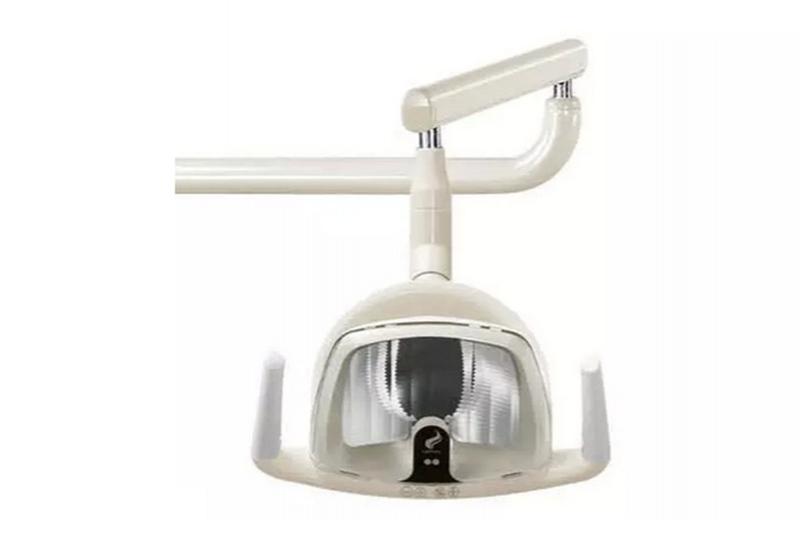

The dental chair's lamp features a continuous dimming function, and can filter blue light in order to reduce curing effects on the resin. In addition, the light's color temperature can also be adjusted.
There are 15 function buttons and 3 chair positions capable of being memorized.
The dental chair has a built-in pure water system that can also switch to tap water usage.

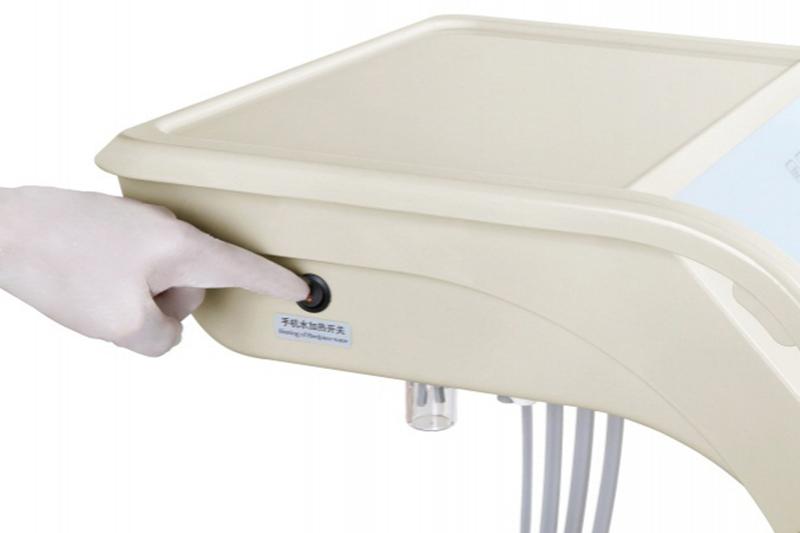

The dental chair's tool tray is equipped with a three-way syringe and a handpiece that can be independently heated. In winter, the syringe and hand piece will maintain a constant temperature of 40℃, easing any discomfort in the patient caused by cold water.

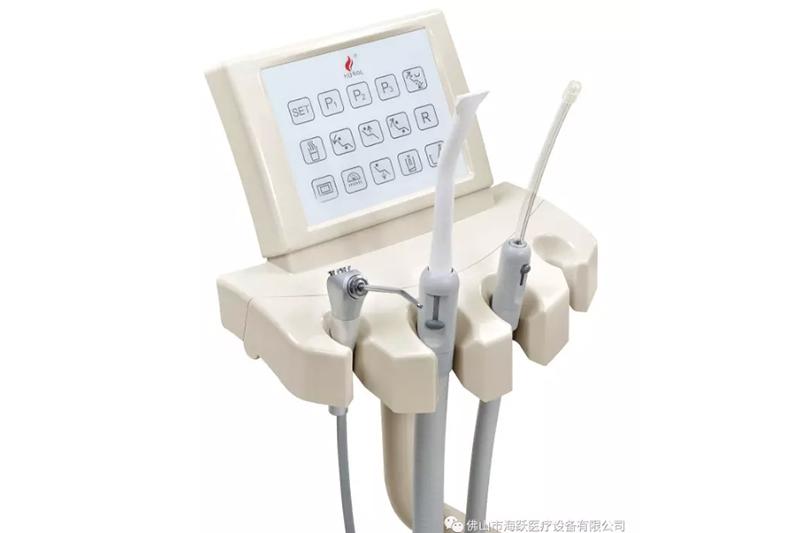

Assistant Operation Panel
Four-handed frame with a wide moving range
There are 15 function buttons, including computer keys that control operation of the flushing spittoon, rinsing, the automatic resetting of the dental chair and the closing of the patient position and oral light. In addition, the chair is equipped with a suction saliva ejector valve, which has an intensity control button in order to facilitate control of the suction flow.
This department is the wet suction central vacuum design. In addition, this part has a weak suction saliva ejector valve, which features an intensity control button in order to facilitate control of the suction flow.

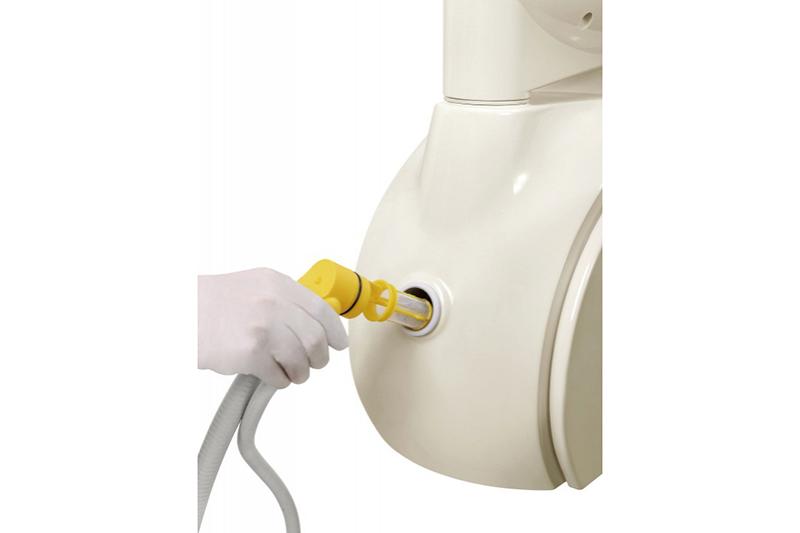

This department also has a three-way syringe (water, gas, water aerosol) and a removable head for easy cleaning. It is also equipped with a vacuum filter.
Water supply system
Suction system with high efficiency and low noise
A variety of vacuum types: negative air pressure, (air suction) wet pumping, semi-wet pumping, dry pumping
The water supply system can switch between pure water and tap water. It can directly connect to the hospital's purified water system. In addition, the system has pipeline disinfection equipment to ensure water quality and safety.
The dental chair's LED intraoral camera can adjust the color temperature. The intraoral camera can be controlled by the sensor or by the dentist's/assistant's control panel.

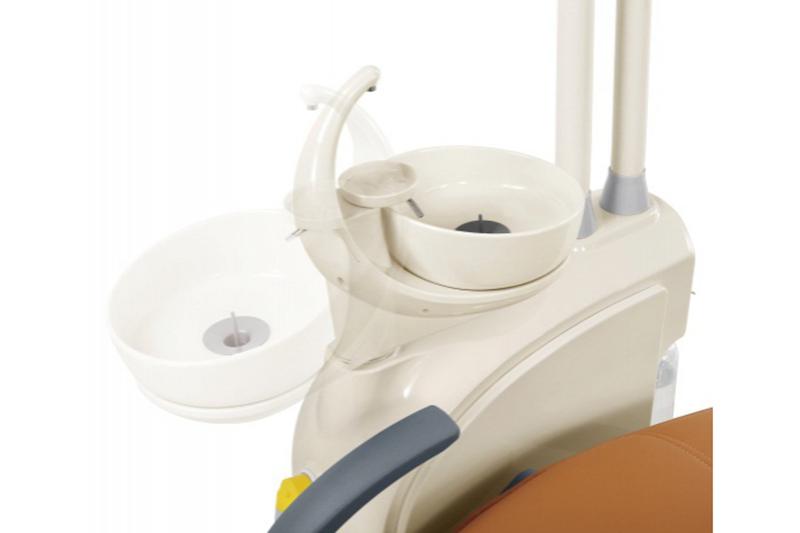

One-time removable spittoon, with a smooth body that is free of sharp edges: It can rotate up to 210 degrees for easy cleaning and disinfection. In addition, the waterflow is smooth, with the water speed being no less than 4L/minute.
Doctor seat 1 unit
Three-way syringe 2 sets
Weak suction saliva ejector valve 1 set
Strong suction saliva ejector valve 1 set
Intraoral camera 1 set
Dental X-ray viewer 1 set
Quantitative water supply control system of cuspidor bowl rinse and mouth rinse cup fill 1 set
Foot switch 1 set
Imported four-hole high-speed hand piece
Imported four-hole low-speed hand piece
Domestic dental scaler (N2)
